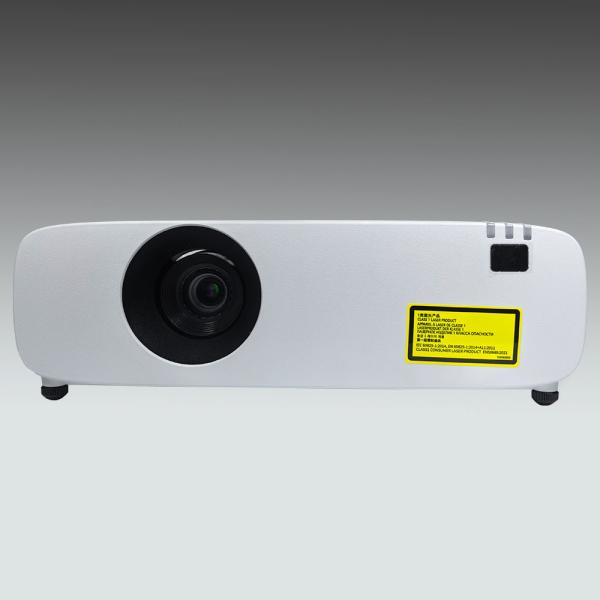

SMX MX-STD5500UG Standard Throw Laser Projector with 5500 Lumens Brightness and WUXGA Resolution
The SMX MX-STD5500UG 5500 Lumen Laser Projector is a powerful projection solution that combines high brightness with the precision of laser technology, delivering exceptional visual experiences across various settings.
Key Features:
The projector's high brightness output of 5500 lumens ensures clear and vivid images even in well-lit environments.
WUXGA resolution provides high clarity and detailed images, making it suitable for applications where sharp and crisp visuals are important.
Utilizing advanced laser light source technology, the projector provides long-lasting performance, color accuracy, and reliability for consistent image quality.
- Sharp and Detailed Projection:
With a high-resolution display, the projector delivers sharp, crisp images with intricate details, making it ideal for presentations, movies, and more.
Equipped with a range of input ports, the projector supports seamless connection to various devices such as laptops, Blu-ray players, and more.
Specification
| Model No. | MX-STD5500UG |
| Brightness |
| | Brightness (Ansi Lumen) | 5500 |
| Resolution | WUXGA |
| Overall Spec |
Light source
Lifetime | Light Source | Laser |
| Normal mode | 20000hrs |
| ECO1 mode | 30000hrs(TBD) |
| Projection Lens | Lens Vendor | RICOH |
| F | 1.5~2.08 |
| f | 17.2~27.7mm |
| Zoom/Focus | Manual |
| Throw Ratio | 1.2~2.0:1 |
| Zoom Ratio | 1.6x optics |
| Len Shift | V:＋35%～0% |
| Screen size | 30-300 inch |
| CR | Dynamic Contrast Ratio | 5000,000:1 |
| Noise | Noise(dB) | 37dB(Normal) 27dB(ECO1) |
| Uniformity | Uniformity | 80% |
| AR | Aspect Ratio | 16:10 (Standard)/4:3(Compatible) |
| Terminal(I/O port) |
| | Input | VGA, HDMI *2, Video, Audio in *2, USB-A, USB-B, RJ45 |
| Output | VGA, Audio out |
| Control | RS232, RJ45, USB-B, LAN |
| General Spec |
| Audio | Speaker | 16W*1 |
| Power Consumption | Power Requirements | 100~240V@ 50/60Hz |
| Other Functions |
| Keystone | Keystone Correction
(Lens@center) | V: ±30° / H:±30°
Pincushion / Barrel / 4 Corner / 6 Corner Geometry Correction / Grid Image Tune |
| LAN Control | LAN Control | Yes |
| SW Setting | Auto Setup | INPUT SEARCH, AUTO PC, Auto Keystone |
| Auto Ceiling | Yes |
| 360° projection | Yes |
| Dimension&Weight |
| | Product
(WxDxH mm) | 390*294*127 |
| Net. Weight (KG) | 5Kg |
| Accessory |
| | Manual Languages | Chinese, English |
| Standard Accessories | Power cord Remote control |
5000000:1 High Contrast
Speaker
Len Shift
Keystone Correction
LAN Control
Product Ports
